24VDC 1mm Ultrasonic Level Transmitter Mud Water Interface Instrument

Name: 24VDC 1mm Ultrasonic Level Transmitter Mud Water Interface Instrument
Brand: NuoYingJiaYe
Price: 100 USD

Buy cheap 24VDC 1mm Ultrasonic Level Transmitter Mud Water Interface Instrument product

Brand Name : NuoYingJiaYe

Model Number : NYCSUL-N

Certification : CE

Place of Origin : Xi'an, Shaanxi，China

MOQ : 1

Price : $100 to $1300

Payment Terms : T/T

Supply Ability : 1000 pcs/ pre month

Delivery Time : 7 working days

Packaging Details : standard

Product name : Ultrasonic Mud Water Interface Instrument

Range : 5m,10m

Accuracy : ±1%FS

Resolution : 1mm

Process temperature : 0℃～＋60℃

Ambient temperature : －20℃～＋60℃*

Power supply : 24VDC

Length of probe cable : 10 meters (lengthening to 60 meters)

Contact Now

Ultrasonic Mud Water Interface Instrument

Features of Ultrasonic Mud Water Interface Instrument

It can show mud position, distance, echo waveform and historical curve.
Automatic detection of electrical interference on site and interference suppressio.
Internal integrated temperature sensor, real-time temperature compensation for sound speed.
Provide alarm current output to prevent mud from entering blind area or beyond range.
It has 4 to 20mA current simulation, mud level simulation, RS485 communication test and so on.
With built-in keys, you can set parameters on site, and remote parameters can be set through RS485.
It can be shown in both English and Chinese. You can also choose rice and feet.
All input and output lines have overvoltage and overcurrent protection.
Non-contact measurement, long life.

Technical Parameter of Ultrasonic Mud Water Interface Instrument

Type Content	four-wire system/Split type
Measuring range	0～5m,0～10m
Dead band	Less than 0.5m,Less than 0.8m
Accuracy	±1%FS* (Standard condition *)
Resolution	1mm
Beam angle	Angle 12 degrees
Instrument display	Display of mud position, distance, current, echo waveform and historical curve in Chinese and English.
Power supply	DC12V～36V/30mA or AC85V～265V/5W
Analog output	4～20mA/bit12 current output, load less than 500 ohms
Digital output	RS485 / Modbus-RTU protocol(HART 5.0 can be selected)
Switch output	2～4,contact power 3A 250VAC / 5A 30VDC
Instrument material	ABS
Probe material	304 Stainless steel
Electrical interface	PG11
Process interface	G3/4 or G2
Ambient temperature	－20℃～＋60℃*
Process temperature	0℃～＋60℃
Waterproof grade	Instrument :IP65 / Probe :IP68
Depth of draught	Not less than 0.5m
Length of probe cable	10 meters (lengthening to 60 meters)

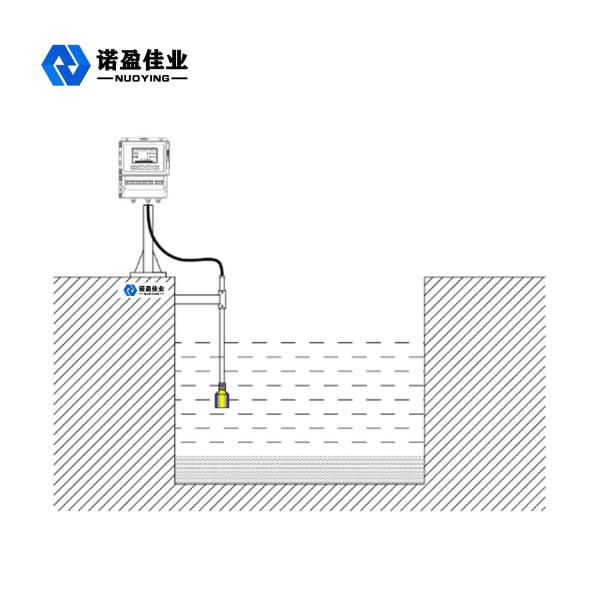

Application of Ultrasonic Mud Water Interface Instrument

The maximum measuring distance of the instrument is 10 meters.
Note: the maximum measurement distance of the mud interface gauge is influenced by turbidity and sludge interface reflectivity.
